Portable Cnc Plasma Cutting Machine 1530 Flame Cutting Machine
Features
1. This portable CNC plasma flame cutting machine adopts shanghai
Fangling control system, it can cut arbitrary complex planar shape,
high efficiency, low cost.
2. The nesting software can read Auto CAD format file directly and
turn into cutting program. It has humanized human machine interface
and powerful automatic programming system.
3. With F1621/F1620 torch height controller the plasma torch could
adjust height automatically.
4. This machine has special features of compact structure,
beautiful style, light weight and convenient movement. It can cut
by manual control, and also can cut automatically with stable
movement and high cutting accuracy.
5. The machine adopts telescopic boom type structure, X, Y axis
both adopt aviation aluminum alloy material, high accuracy, no
deformation and good appearance.
6. Standard size : 1500*3000mm Optional size: 1500*4000/6000mm
Description
Portable CNC flame/plasma cutting machines can be programmed to cut
any plane shape parts composed of beeline and arc ,which are same
as large gantry cutting machines .
It is equipped with a 5.7 inch LED with dynamic and static
graphical display .It is directly perceived and very easy to learn
.It can be programmed to cutting parts directly , and also can be
operated in computer translating instructions into a program file
by CAD program , and then deducing it via U hardware .
The standard positioning of this machine is flame cutting ,external
hanging plasma cutter is also workable.
Specifications
| Machine Name | portable CNC plasma flame cutting machine |
| Input power for machine body | 220V AC, 50/60Hz, single phase |
| Input power for plasma source | 380V AC,50/60Hz, three phase |
| Working area | 1500x3000mm, 1500x6000mm, can be customized |
| Cutting mode | Plasma+flame |
| Cutting speed | 0-4000mm/min(plasma); 0-700mm/min(flame) |
| Cutting thickness(plasma) | 2-25mm, depends on plasma source |
| Cutting thickness(flame) | 6-120mm |
| CNC control system | Fangling F2100B 7.0 inch CNC |
| Torch Height controller | Fangling F1621 auto torch height control for plasma |
| Nest Software | FastCAM / HiNest/ StarCAM |
| Plasma source (optional) | 100A,120A, 160A,200A,300A |
Application

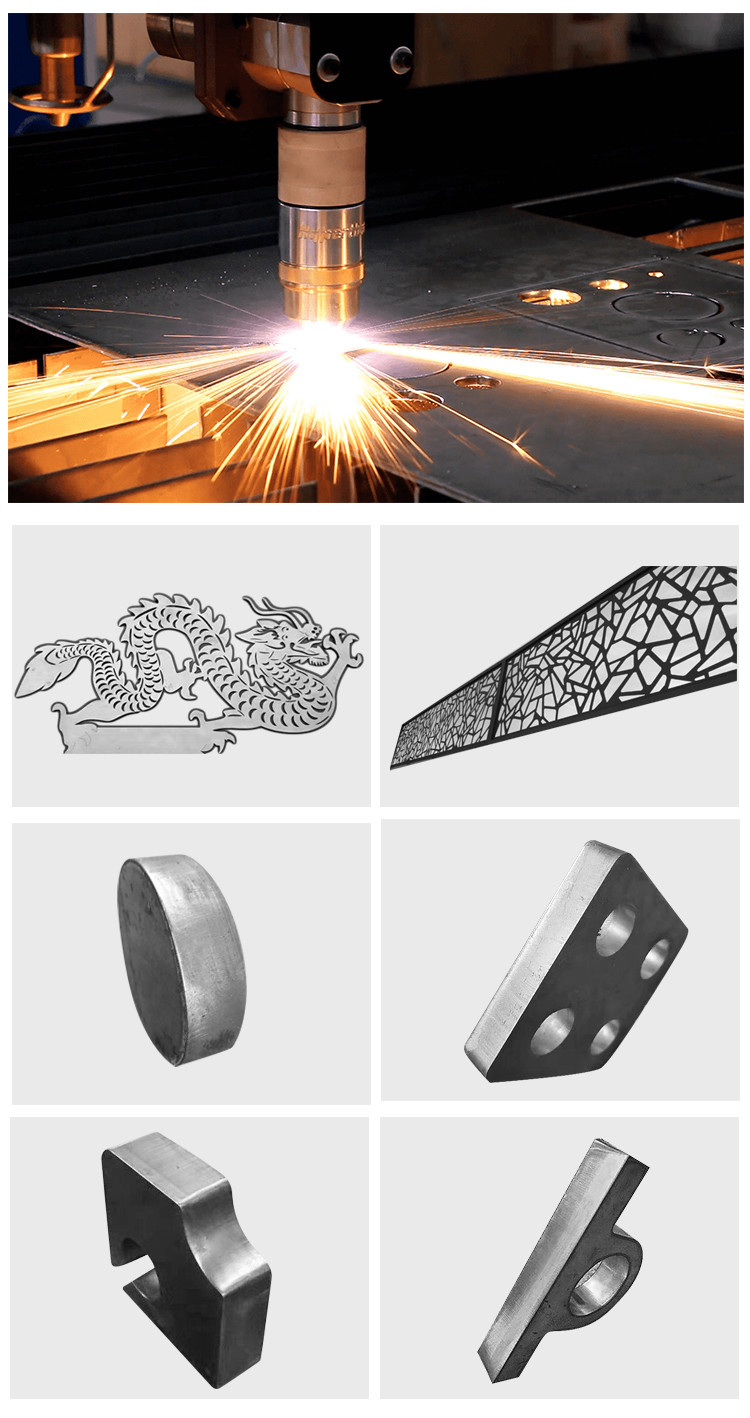

Portable CNC plasma flame cutting machine can cut mild steel, high
carbon steel, stainless steel, aluminum, copper and other
non-ferrous metal, etc.
It is widely applied in industries such as automobile,
shipbuilding, machine tools, pressure vessels, engineering
machinery, mining machinery,electric power, building bridges, steel
Industries.

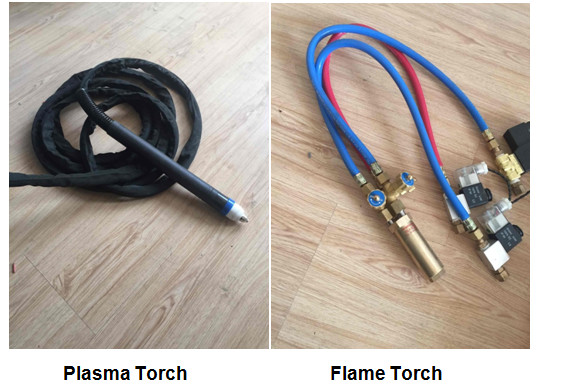

Machine detail shows
Package
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14
years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can
directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in
advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i
should choose?
A: Very easy to choose. Just tell us what you want to do by using
CNC cutting machine, the cutting size and thickness, and then let
us give you perfect solutions and suggestions. Feel free to contact
us!
