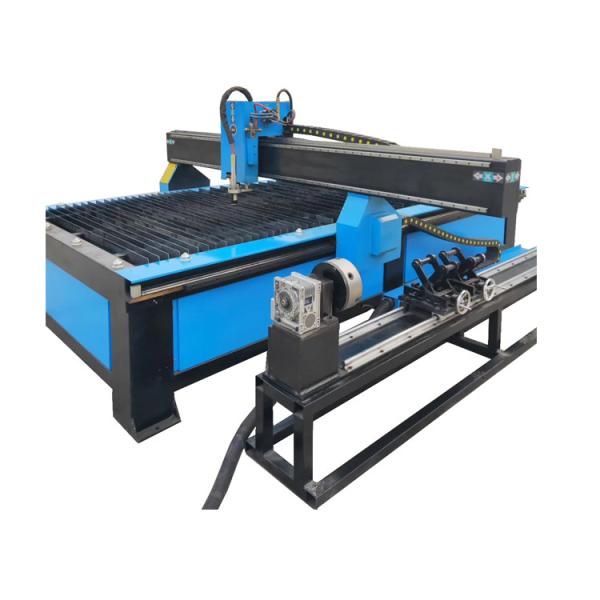

Diy 1530 Iron Steel Pipe Cnc Plasma Cutting Machine Plasma Table
CNC Cutter
1. Application: Advertising industry, arts and handicrafts cutting, kinds of
metallic materials, such as Carbon Steel, Stainless steel, alloy
steel, spring steel, copper plate, aluminium plate, gold, silver,
Titanium and other metal plate and tube.
2. Rotary device for cutting metal pipe, diameter can be 200mm,
300mm, 400mm,500mm, length can be same along with Y-axis.
3. Stability and reliability for light path system and control
system.
4. High precision stepper motor and driver, ensure the efficiency
and accuracy, increasing the stability and reliability greatly.
5. It can be compatible with both China brand and American brand of
plasma source, 100A, 120A etc.
Technical Data
| Name | plasma table cnc cutter metal |
| Effective cutting size for plate | 1500*3000mm |
| Z axis lifting range | up to 150mm |
| Pipe diameter | 30-300mm |
| Pipe length | 3000mm |
| CNC controller | 7.0 inch F2100 |
| Height controller | plasma auto torch height control |
| Chuck base | 1 set with chuck |
| Roller support | 1set |
| Drive motor | step motor, dual drive |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Working voltage | 3P-380V, 50/60Hz |
Maximum cutting speed | 12000mm/min |
Weight | 2200kg |
Beijing Seigniory NC Equipment Co.,Ltd is a professional
manuafacturer and exporter of CNC cutting machine. we have been in
this CNC filed for more than 14 years. Our main products includes
portable CNC,gantry CNC, CNC plasma table for metal sheet and steel
pipes.
Since the estabilsh of our company, we have been sticking to the
path of specialization and had many engineering technology staff
members.
Our machines are widely used in automotive manufacturing,
shipbuilding, fan manufacturing,mining equipment, steel processing,
advertising cutting, enginerring machiney, agricultural machinery
and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK,
Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia,
India and so on.
Our advantage
Our Certificate
Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14
years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can
directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in
advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i
should choose?
A: Very easy to choose. Just tell us what you want to do by using
CNC cutting machine, the cutting size and thickness, and then let
us give you perfect solutions and suggestions. Feel free to contact
us!
