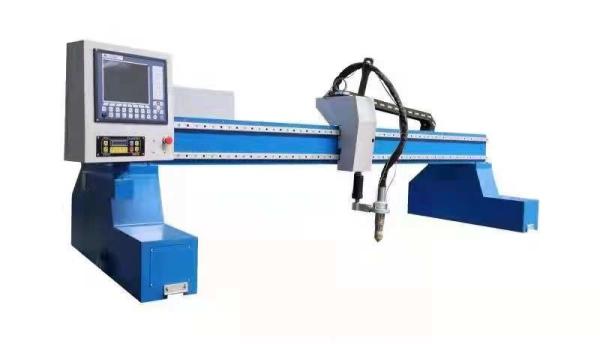

3M Heavy Gantry CNC plasma flame cutting machine for Sheet Metal
1. Gantry CNC Plasma Cutting Machine is a high-efficiency,
high-precision, and high-reliability multifunctional thermal
cutting automation equipment that combines computer control, tight
mechanical transmission, oxygen gas cutting or plasma cutting
technology.
2. This gantry beam adopts box-welded structure, with annealing
treatment, non-deformation.
3. Gantry structure with double-driven system, working size can be
customized upon requirement.
4. It can be used for cutting carbon steel, stainless steel and
non-ferrous metal in any 2D graphics
5. Gantry plasma cutting machine is widely used in metal
cuttingfields
Product Parameters
| Name | gantry CNC plasma cutting machine |
| Input power | 220V, 50/60Hz |
| Effective cutting size | 3000x6000mm, can do other sizes as per clients' requirements |
| CNC controller | 10.4 inch F2300 |
| THC | auto torch height control for plasma |
| Cutting mode | plasma+flame |
| Drive motor | Servo motor or step motor |
| Reducer | ZD high precision reducer |
| Cutting speed | 0-8000mm/min |
| Cutting thickness | 2-40mm(plasma, depends on plasma source), 6-120mm(flame) |
| Transmission | rack & gear |
| Nest software | FastCAM/StarCAM/HiNest |
| Plasma source | 100A,120A,200A,300A,400A |
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional
manuafacturer and exporter of CNC cutting machine. we have been in
this CNC filed for more than 14 years. Our main products includes
portable CNC,gantry CNC, CNC plasma table for metal sheet and steel
pipes.
Since the estabilsh of our company, we have been sticking to the
path of specialization and had many engineering technology staff
members.
Our machines are widely used in automotive manufacturing,
shipbuilding, fan manufacturing,mining equipment, steel processing,
advertising cutting, enginerring machiney, agricultural machinery
and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK,
Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia,
India and so on.
Our advantage
Our certificate
Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14
years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can
directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in
advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i
should choose?
A: Very easy to choose. Just tell us what you want to do by using
CNC cutting machine, the cutting size and thickness, and then let
us give you perfect solutions and suggestions. Feel free to contact
us!
